YPI Phantom S-Series PS150

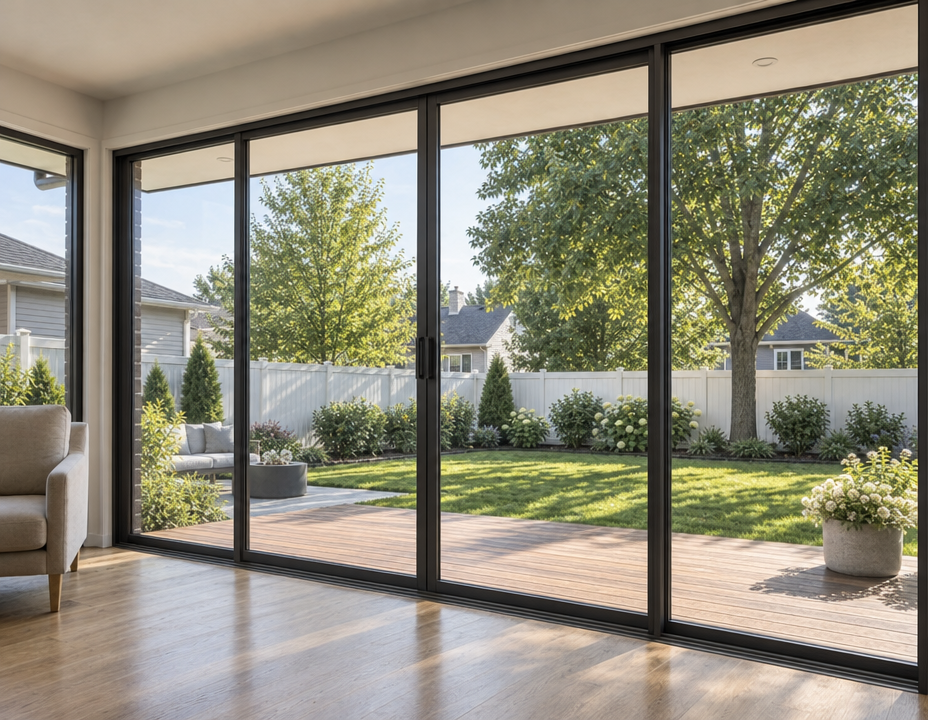

PS150 is the commercial flagship for lift-and-slide, multi-slide, and pocket scenic doors — the heavy-duty S-Series chassis for large panel mass and span.
Lift-and-slide / multi-slide / pocket scenic doors
YPI Phantom S-Series PS150 Gallery
Scenic door photography and detail references for the PS150 system.
Technical Specifications
Dimensions & Structure
| Feature | Specification |
|---|---|
| Frame Depth | 150mm / 120mm chassis class (approx. 5.91 / 4.72 inches) |
| Aluminum Alloy | 6063-T5 High-Precision Extruded Aluminum |
| Wall Thickness | 2.0mm (Commercial Grade Standard) |
| Max Panel Height | Up to 3.5 Meters (approx. 11.5 Feet) |
| Max Panel Weight | 400kg (880 lbs per sash with high-bearing pulleys) |
Thermal Performance
| Feature | Specification |
|---|---|
| Thermal Break | 32mm Multi-Cavity PA66 Reinforced Nylon |
| Standard Glazing | 5mm Low-E / 20A / 5mm Tempered (Dual Pane with Argon) |
| U-Factor | 0.20 – 0.45 BTU/h·ft²·°F |
| Climate Zones | California Title 24 Compliant |
Engineering & Performance Highlights
Lift-and-slide ergonomics
Sash lifts off weather stripping before sliding — silent travel and compression-tight closure when lowered.
Multi-slide & pocket flexibility
Specify multi-panel stacking or pocket recesses for wide clear openings on primary living elevations.
Commercial-grade strength
2.0mm wall thickness and high-bearing rollers for panels approaching 880 lbs per sash.
Title 24 thermal target
32mm PA66 thermal break with a U-factor of 0.20–0.45 and NFRC documentation for plan check.
Configuration Notes
- Primary roles: lift-and-slide, multi-slide, and pocket scenic doors.
- OX / XO, multi-slide stacking, and 90° corners (site-specific engineered) are in scope.
- Coordinate threshold, pocket depth, and structural header deflection early with the design team.
Structural Data
AAMA/WDMA/NAFS structural performance for this product — air, water, and structural design pressure.
| Metric | Value |
|---|---|
| Test standard | AAMA/WDMA/CSA 101/I.S.2/A440 (NAFS) |
| Performance class | CW |
| Performance grade | PG45 |
| Design pressure | ±2160 Pa (±45 psf) |
| Structural test pressure | ±3240 Pa (±67.5 psf) |
| Ultimate design wind load | ±4860 Pa (±101.25 psf) |
| Air infiltration | ≤0.5 L/s·m² @ 300 Pa |
| Water penetration | 430 Pa (9 psf) |
| Published class / grade | CW-PG45 |
These are the NAFS CW-PG45 structural values for the PS150 door. Project-specific lab reports supersede this summary when issued.
Technical Downloads
Performance reports, CAD details, and exploded views for this product series. Warranty documentation is on the Technical Resources page.
Details

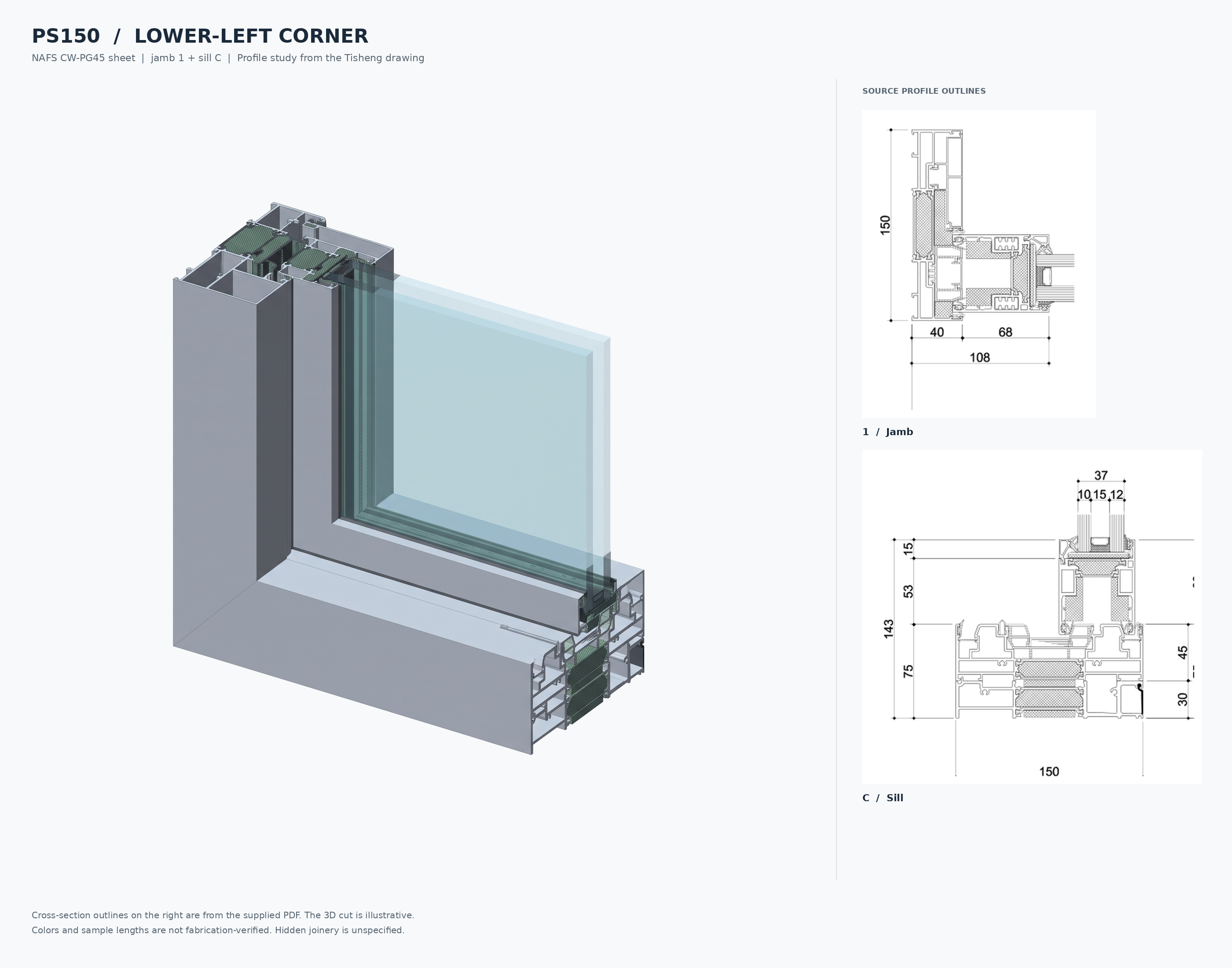

PDF & CAD Head/Jamb/Sill details.
Download — PDF & CAD DetailsExploded View Diagrams
Frame assembly diagrams showing how components fit together.
Download — Exploded View DiagramsCertifications & Standards
ASTM / NFRC Certified Compliance
Thermal
NFRC 100/200
Structural
AAMA/WDMA/CSA 101/I.S.2/A440
Acoustics
ASTM E90
CA Title 24 Compliant - Designed specifically for California energy standards
