YPI Phantom S-Series PS128

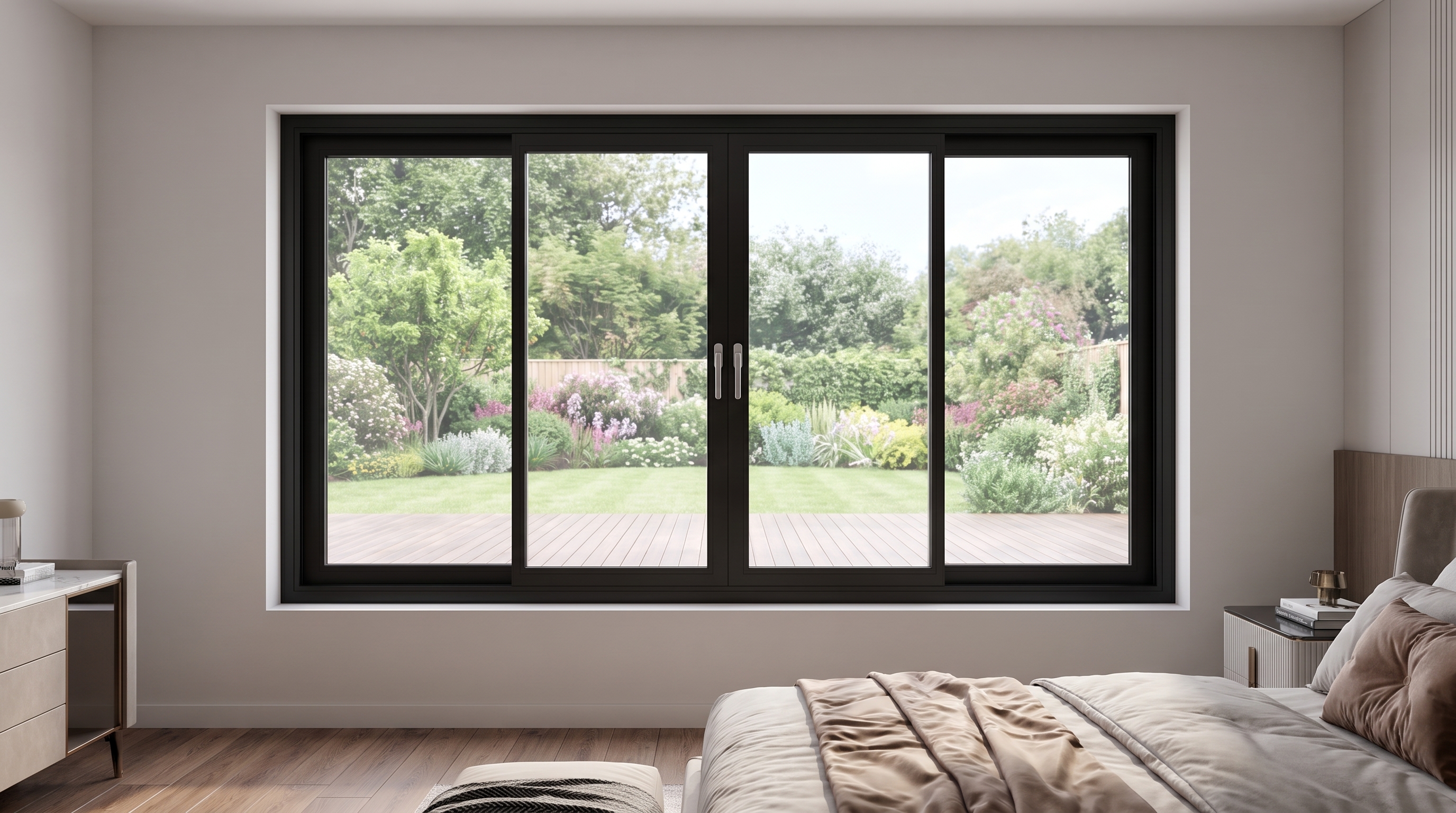

PS128 sliding windows bring horizontal operation and slim sightlines to residential and light-commercial openings — the window companion to the PS128 slimline patio door and PS150 scenic doors.
Sliding window
YPI Phantom S-Series PS128 Window Gallery
Window references for the PS128 sliding system.
Technical Specifications

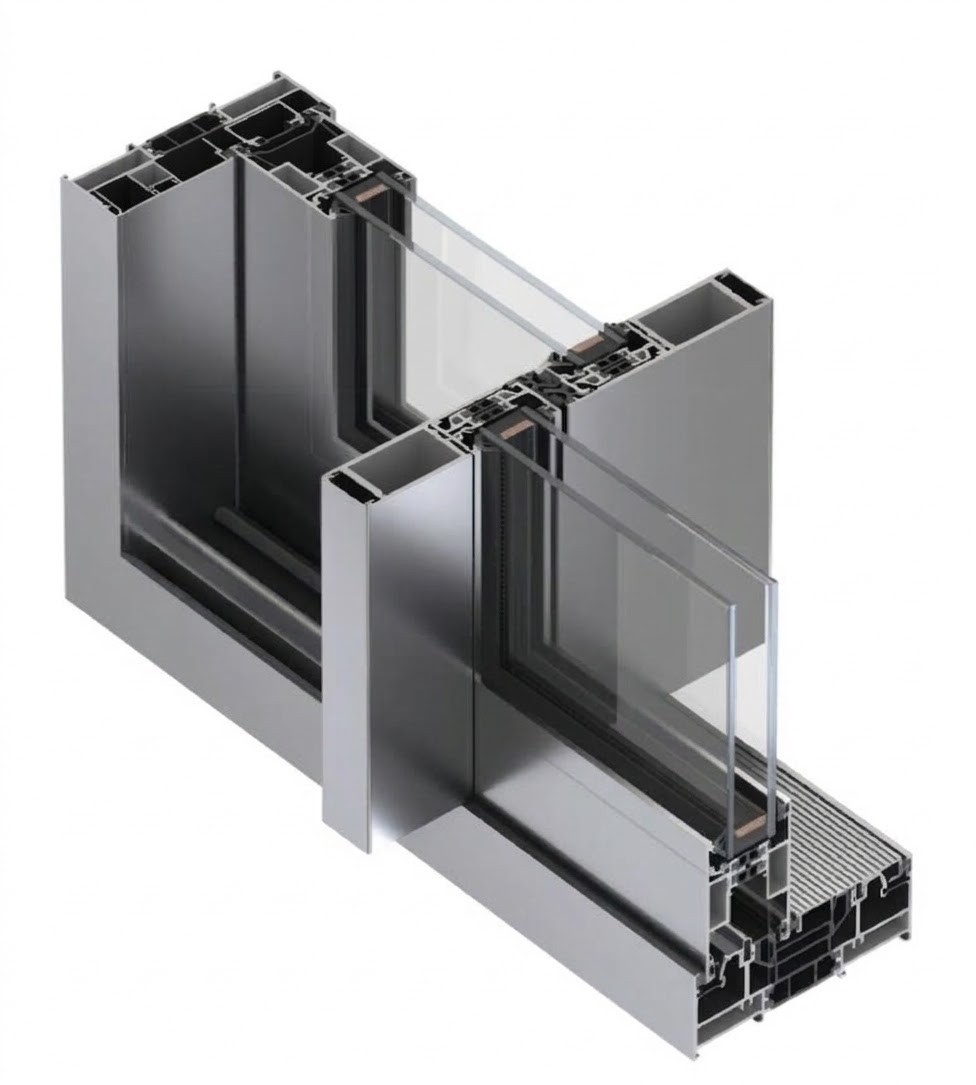

Dimensions & Structure
| Feature | Specification |
|---|---|
| Frame Depth | 128mm class (approx. 5.04 inches) |
| Aluminum Alloy | 6063-T5 High-Precision Extruded Aluminum |
| Wall Thickness | 2.0mm (Commercial Grade Standard) |
| Max Panel Height | Up to 2.8 Meters (approx. 9 Feet) |
| Max Panel Weight | Per roller schedule (Sized to span and glazing) |
Thermal Performance
| Feature | Specification |
|---|---|
| Thermal Break | Multi-Cavity PA66 Reinforced Nylon |
| Standard Glazing | 5mm Low-E / spacer / 5mm Tempered (dual pane) |
| U-Factor | 0.20 – 0.45 BTU/h·ft²·°F |
| Climate Zones | California Title 24 Compliant |
Engineering & Performance Highlights
Horizontal sliding convenience
Effortless side-to-side operation for bedroom and living window openings.
Matched patio door option
Same PS128 system available as a slimline patio door when the opening needs door-scale performance.
CW-PG40 structural rating
Commercial sliding performance messaging aligned with Phantom S-Series positioning.
Thermal-break frames
PA66 thermal break and Low-E glazing packages for Title 24 project paths.
Configuration Notes
- Primary role: sliding window.

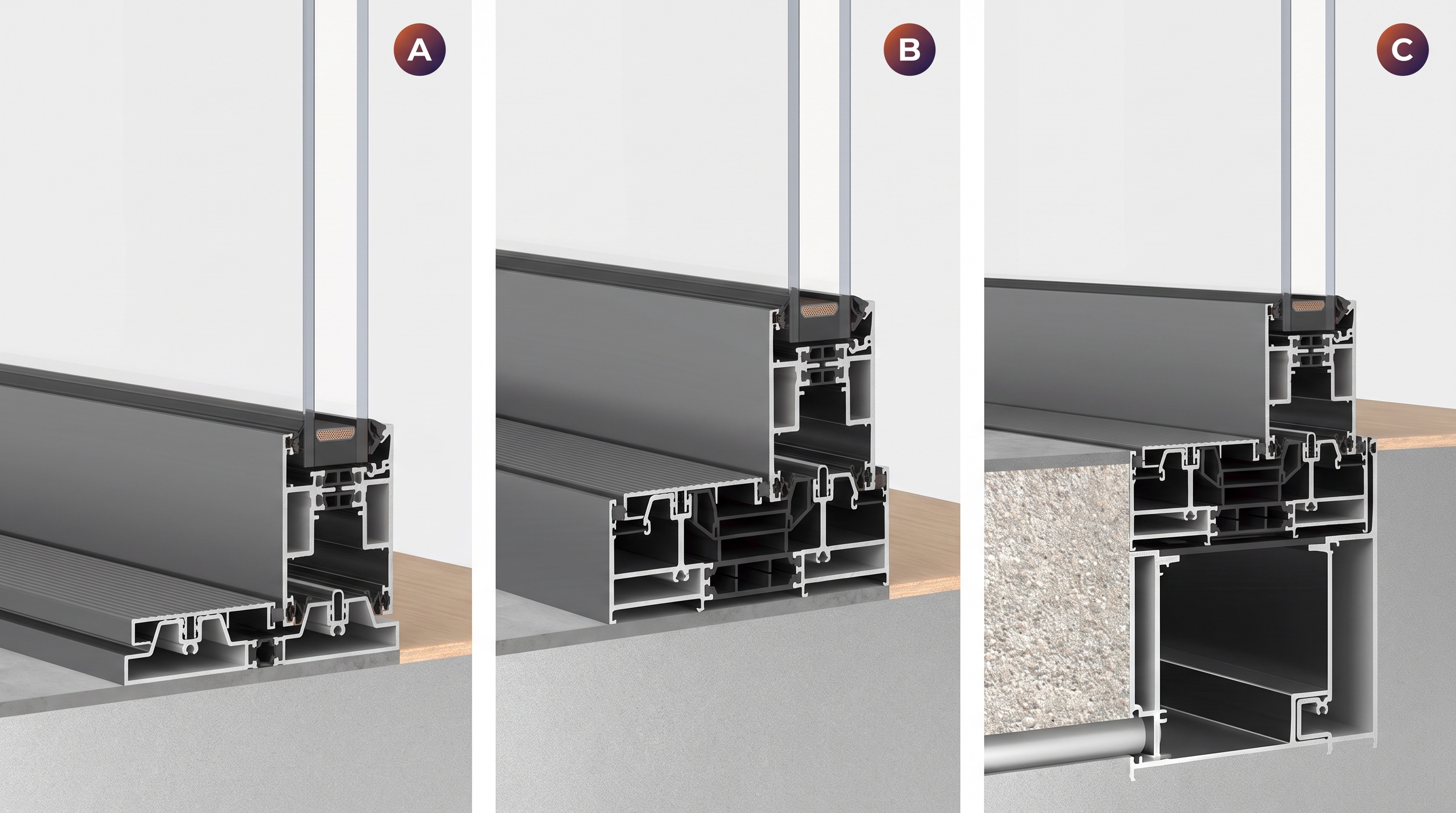

- Typical OX / XO / OXO / OXXO layouts; confirm track count and stacking for multi-panel runs.
- Use the PS128 door page for slimline patio openings, or PS150 for heavy lift-slide scenic doors.
Structural Data
AAMA/WDMA/NAFS structural performance for this product — air, water, and structural design pressure.
| Metric | Value |
|---|---|
| Test standard | AAMA/WDMA/CSA 101/I.S.2/A440 (NAFS) |
| Performance class | CW |
| Performance grade | PG40 |
| Design pressure | ±1920 Pa (±40 psf) |
| Structural test pressure | ±2880 Pa (±60 psf) |
| Ultimate design wind load | ±4320 Pa (±90 psf) |
| Air infiltration | ≤0.5 L/s·m² @ 300 Pa |
| Water penetration | 390 Pa (8 psf) |
| Published class / grade | CW-PG40 |
These are the NAFS CW-PG40 structural values for the PS128 sliding window and slimline patio door. Project-specific lab reports supersede this summary when issued.
Technical Downloads
Performance reports, CAD details, and exploded views for this product series. Warranty documentation is on the Technical Resources page.
Details
PDF & CAD Head/Jamb/Sill details.
Download — PDF & CAD DetailsExploded View Diagrams
Frame assembly diagrams showing how components fit together.
Download — Exploded View DiagramsCertifications & Standards
ASTM / NFRC Certified Compliance
Thermal
NFRC 100/200
Structural
AAMA/WDMA/CSA 101/I.S.2/A440
Acoustics
ASTM E90
CA Title 24 Compliant - Designed specifically for California energy standards
Operation Types
Horizontal Sliding
Primary window operation for PS128 — slim sightlines with smooth horizontal travel for residential and light-commercial openings.
Multi-Panel
OX, XO, OXO, and OXXO layouts for wider spans; confirm track count and stacking for multi-panel runs.
Corner & Custom
Site-Specific Engineered
Corner and specialty layouts available when coordinated early with the design and structural team.
Finish & Configuration Options
California Palette (Standard)
- Matte Black (RAL 9005)
- Dark Bronze (AAMA 2604)
- Arctic White
- Clear Anodized
Glass Options
- Dual-pane Low-E with argon
- Triple Glazing (Solarban 60/70)
- Laminated Security Glass
- Spectrally Selective Triple-Silver Low-E
Configurations
- OX / XO
- OXO
- OXXO
- Custom multi-panel sliders
Opening Configurations
