YPI Phantom S-Series ES82FD
ES82FD is the folding / bifold door option in the Phantom S-Series — panel stacks that open wide for dining and living transitions while staying in the same finish and glass language as PS150.
Folding / bifold door
YPI Phantom S-Series ES82FD Gallery

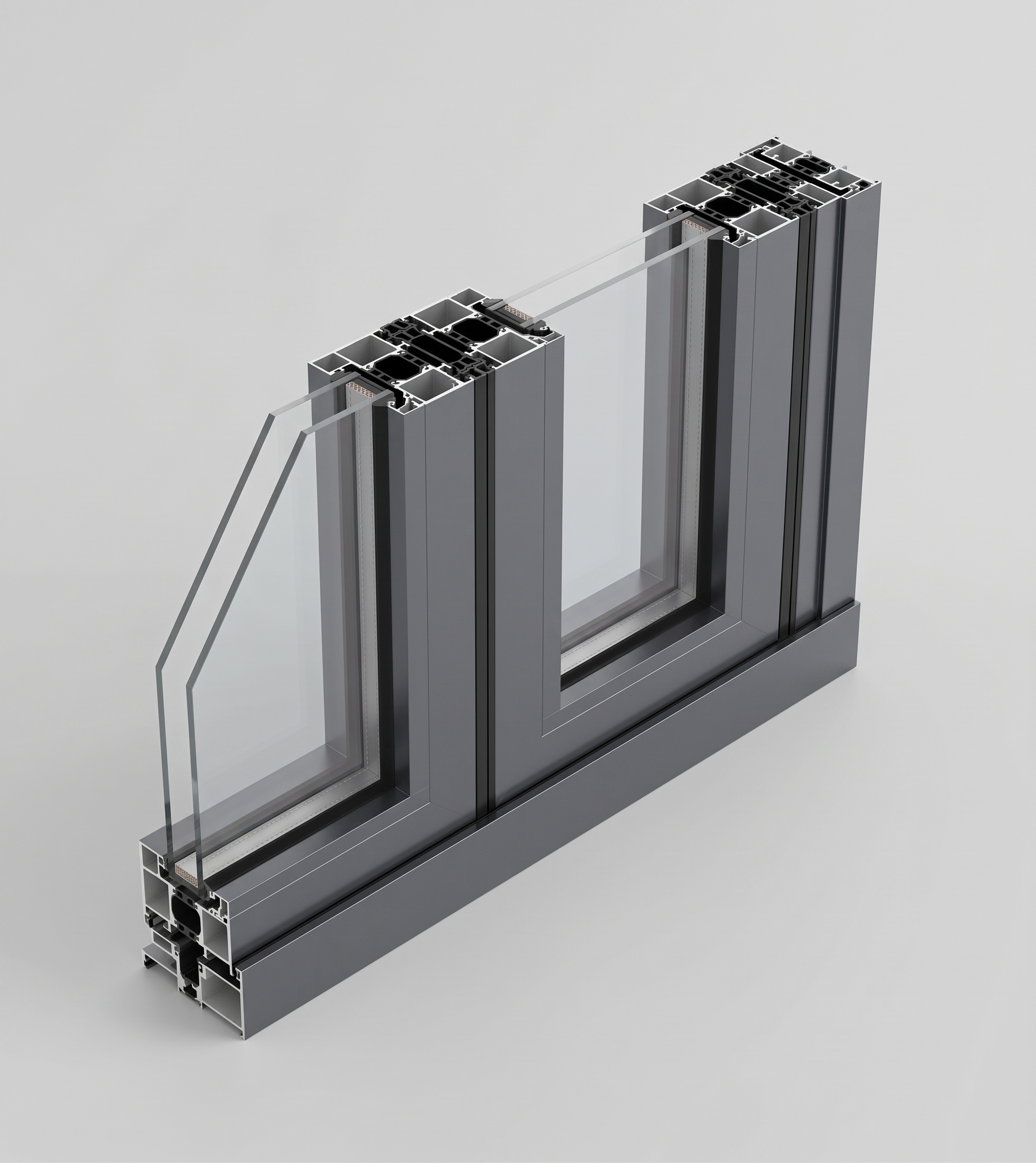

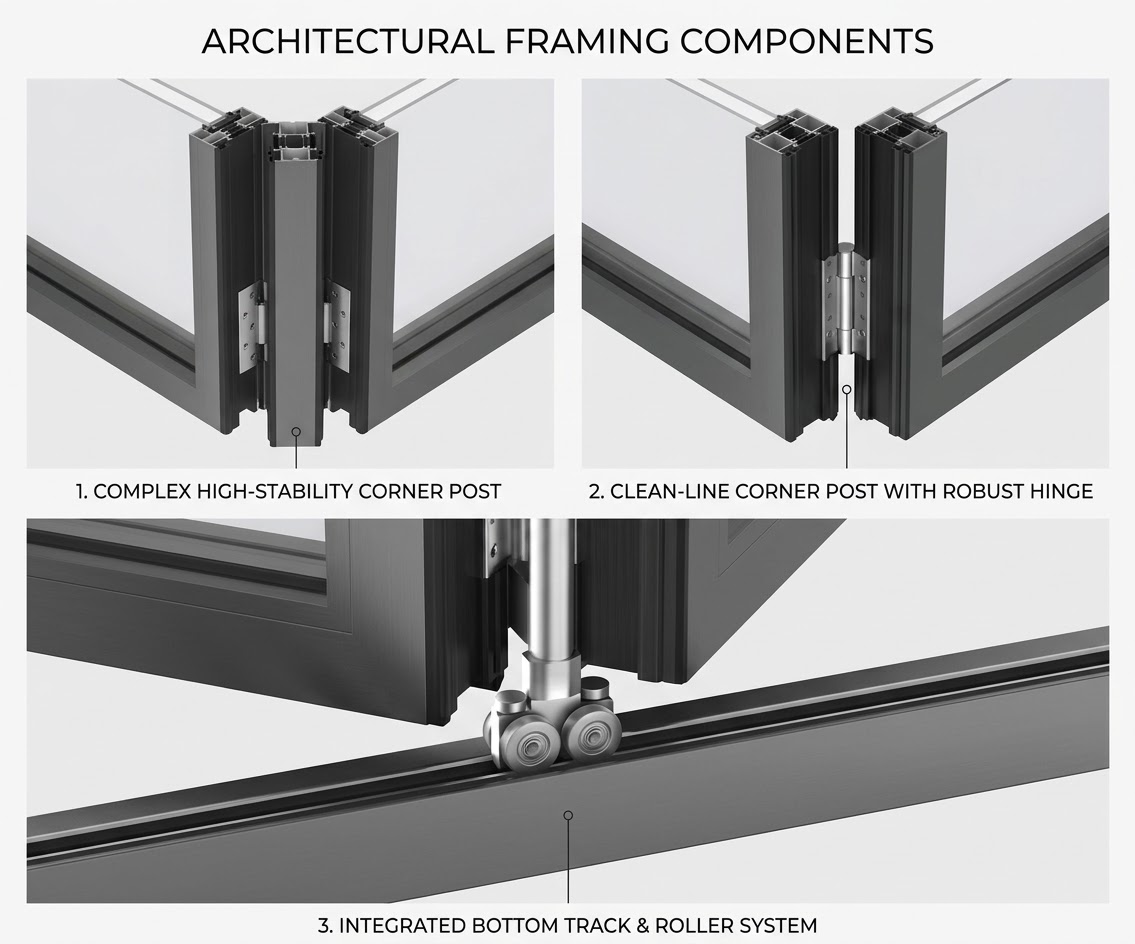

Open folding spans, the frame section, corner posts and track hardware, and the exterior elevation with maximum panel size.
Technical Specifications
Dimensions & Structure
| Feature | Specification |
|---|---|
| Frame Depth | 82mm class (folding door) (approx. 3.23 inches) |
| Aluminum Alloy | 6063-T5 High-Precision Extruded Aluminum |
| Wall Thickness | 2.0mm (Commercial Grade Standard) |
| Max Panel Height | Up to 3.5 Meters (approx. 11.5 Feet) |
| Max Panel Weight | Per hardware schedule (Sized to panel count and glazing) |
Thermal Performance
| Feature | Specification |
|---|---|
| Thermal Break | Multi-Cavity PA66 Reinforced Nylon |
| Standard Glazing | Low-E dual pane (project-specific) |
| U-Factor | 0.20 – 0.45 BTU/h·ft²·°F |
| Climate Zones | California Title 24 path — verify per assembly |
Engineering & Performance Highlights
Wide clear openings
Folding stacks maximize access for entertainment and indoor-outdoor dining.
Series-consistent finishes
Same California palette and glass options as other Phantom S-Series products.
CW-PG40 structural rating
Commercial window/door CW-PG40 structural rating for wind-load conscious projects.
Configurable stack direction
Outward or inward stack, left or right, engineered per opening and traffic pattern.
Configuration Notes
- Primary role: folding / bifold door.
- Confirm panel count, stack side, and threshold type during design development.
- For lift-slide or pocket scenic spans, specify PS150 instead.
Structural Data
AAMA/WDMA/NAFS structural performance for this product — air, water, and structural design pressure.
| Metric | Value |
|---|---|
| Test standard | AAMA/WDMA/CSA 101/I.S.2/A440 (NAFS) |
| Performance class | CW |
| Performance grade | PG40 |
| Design pressure | 40 psf (1,920 Pa) |
| Air infiltration | Meets NAFS air-infiltration limits for stated class/grade |
| Water penetration | Meets NAFS water-penetration requirements for PG40 |
| Structural / uniform load | Uniform design pressure PG40; structural overload per NAFS protocol |
| Published class / grade | CW-PG40 |
Values reflect the standardized Phantom CW-PG40 / AW-PG40 design intent under NAFS. Project-specific lab reports supersede this summary when issued.
Technical Downloads
Performance reports, CAD details, and exploded views for this product series. Warranty documentation is on the Technical Resources page.
Details
PDF & CAD Head/Jamb/Sill details.
Download — PDF & CAD DetailsExploded View Diagrams
Frame assembly diagrams showing how components fit together.
Download — Exploded View DiagramsCertifications & Standards
ASTM / NFRC Certified Compliance
Thermal
NFRC 100/200
Structural
AAMA/WDMA/CSA 101/I.S.2/A440
Acoustics
ASTM E90
CA Title 24 Compliant - Designed specifically for California energy standards
Finish & Configuration Options
California Palette (Standard)
- Matte Black (RAL 9005)
- Dark Bronze (AAMA 2604)
- Arctic White
- Clear Anodized
Glass Options
- Dual-pane Low-E with argon
- Triple Glazing (Solarban 60/70)
- Laminated Security Glass
- Spectrally Selective Triple-Silver Low-E
Configurations
- Folding / bifold (even or odd panel counts)
- Outward or inward stack (project engineered)
- With flanking fixed sidelights
Ready to Create Light?
Contact us to learn more about The Phantom Series and how our whole house solution can transform your project.
